Data Gateway |
||||
|
||||
|

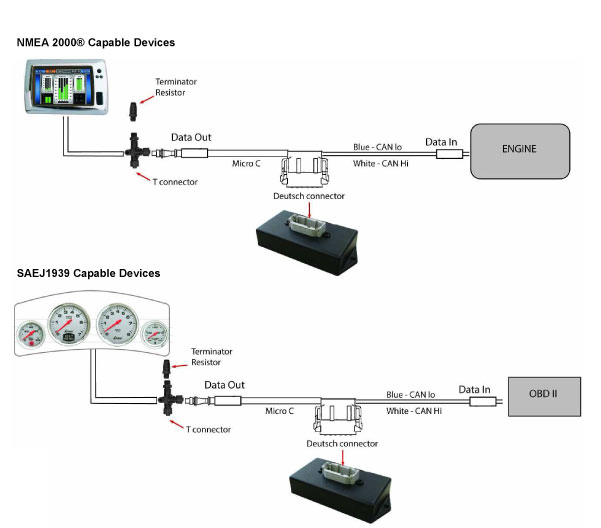

Available for J1939, MEFI4A, MEFI4B, MEFI5, MEFI6 and the MoTeC M800 ECM. With the new engine ECM (Engine Control Module) Data Gateway you can bring CAN (Controller Area Network) bus engine data to an existing NMEA 2000® navigation device. The engine info that displays is the same data that your engine builder or tuner can pull up on their laptops using advanced software. Livorsi’s Data Gateway simply plugs into your nav unit between the display and the GPS antenna using a standard NMEA 2000® T connector. On the engine side it will interface either by the CAN+ / CAN- wires or by using the diagnostic port on your engine. Not sure if you nav unit is NMEA 2000® compatible? Email us your make and model number to find out. tomv@compx.com |
The Data Gateway will convert your navigation screen into a digital dash board displaying real time engine data and fault codes. Single Engine Configuration
Part Numbers
|
||||||||
Garmin GPSMAP® Displays |
|||||||||
GPSMAP® 5212Dimensions: 12" W x 9.5" H x 4.7" D Model #: 010-00594-01 GPSMAP® 5208Dimensions: 10.1" W x 6.8" H x 4.2" D Model #: 010-00593-01 GPSMAP® 740Dimensions:8.8" W x 5.6" H x 3.1" D Model #: GPSMAP740 |
For the ultimate hi-tech dash, combine this awesome tool with the Data Gateway and Vantage View or Mega & Race Series gauges. Livorsi offers Garmin GPSMAP® touch-screen displays and in three sizes as well as optional power coat bezels to match your gauges.
|
||||||||
![]() |
|||||||||
|
