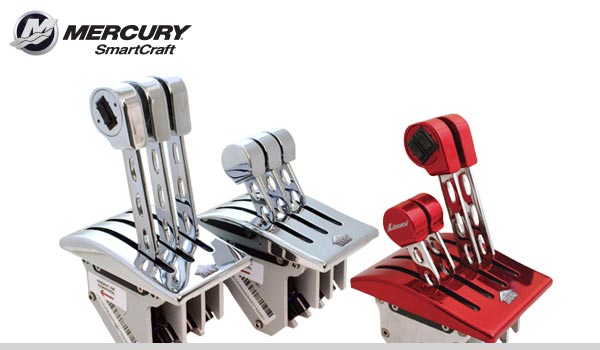

Livorsi DTS Controls

Livorsi Marine, Inc. has obtained a license from Mercury Marine which allows us to combine DTS (Digital Throttle and Shift) technology with the options and quality of Livorsi controls.

  • Designed to work on all Mercury DTS equipped engines
    • Verado 150 – 400 SCI
    • Mercruiser 5.0L – 8.2L
    • Optimax 225
    • Mercury Racing 565, 1100, 1350
    • and Cummins engines that are DTS capable
  • Provides consistent precise control of your boat using Smartcraft ® DTS technology
  • Provides smooth and safe shifting
  • Direct drive of throttle position sensors result in faster response times giving you complete control of your boat
  • Designed to work on all Mercury and Cummins I/O and OB DTS compatible engines
  • The completely redesigned: smaller and lighter; constructed of stainless steel and billet aluminum for years of dependable service
  • The ability to adjust tension for each handle
  • The ergonomically designed knobs feature your choice of single or twin drive trim switches or momentary up and down switches

For part numbers and pricing please call 847.752.2700

Mercury Shadow Mode Rigging Kits

Shadow mode for Livorsi DTS Controls is now available.

Shadow mode allows for automatic throttle synchronization for triple or quad engine applications; where two throttle levers operate three engines or four engines. Requires appropriate Mercury shadow mode rigging kit.

Description Part Number
Triple Engine Kit 8M8025983
Quad Engine Kit 8M8025984

Mercury DTS Rigging Kits

Livorsi now offers Mercury DTS rigging kit. Please call for pricing and availability

Description Part Number
Single Engine Kit 84-892955K04
Twin Engine Kit 84-893378K04
Triple Engine Kit 892955K32
Quad Engine Kit Order (4) single engine kits

Livorsi DTS Controls require the appropriate Mercury rigging kit. Only Mercury Certified Dealers may install Livorsi DTS Controls.

Livorsi can provide you with a contact for a Mercury Certified Dealer in your area, please call 847.752.2700.

Installation Manuals

Please note:The 7 3/4" overall footprint of the base plates is not centered within the of 5 1/4" cutout length.
