livorsi PLATINUM SERIES THROTTLES

Available in three throttle/shift configurations:

  • Fully Mechanical
  • Fully Electric
  • Mechanical/Electric (Hybrid)
  • These controls are compatible with throttle, shift, jet drives or buckets (1 function per handle), 33C or 43C cables

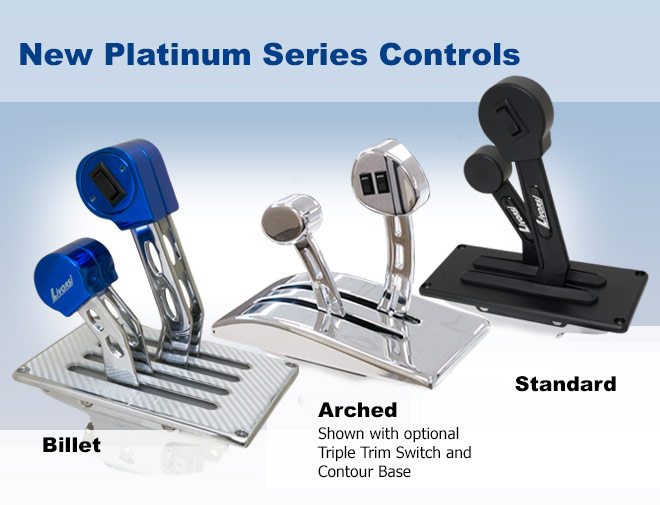

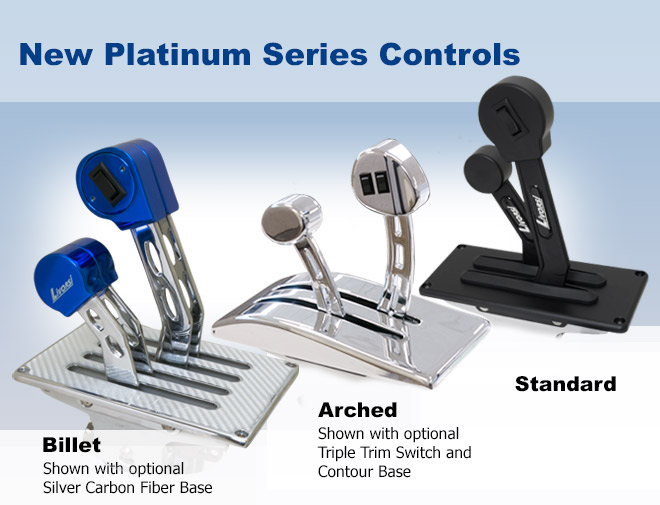

  • Three different styles:
    • Standard
    • Billet
    • Arched
  • Billet aluminum construction = strong & lightweight
  • Corrosion Resistant, two layers of protection-
    • anodized base coat
    • powder coat finish
  • Shorter base depth:
    • mechanical and hybrid units measure 8.125" deep
    • electric units measure 6.5"
  • Ergonomic knobs for long hours of comfortable operation
  • Controls feature friction and detent that may be adjusted while installed on your helm
  • Flat base and the optional contour base color options include chrome, simulated carbon fiber or a powder coat finish

Configurations include one or any combination of the below:

  • The use of mechanical 33C or 43C cables for mechanical levers
  • Electric configurations use compact direct driven angular sensors
    - 0-5 Volt electronic sensors or a PWM signal
  • The use of a micro switch - for electronic transmission shifting
  • Single, twin and triple in-handle trim switch available as shown on the chrome control above
  • Check with the engine manufacturer or Livorsi Marine for electric control compatibility
  • Choose your throttle base in the standard flat or our NEW Contoured Base, available in an array of Colors, Chrome or Carbon Fiber
  • Your choice of 1, 2 or 3 switches in the knob to actuate your drive, tabs, jack plate, etc.
  • Knobs are available in 12 different color options to match most any style or color of your dash helm
