LED Lighting
Download our new Livorsi LED lighting information sheet |
Stainless Steel LED Navication Lights

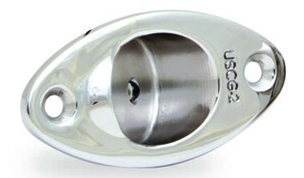

Standard |

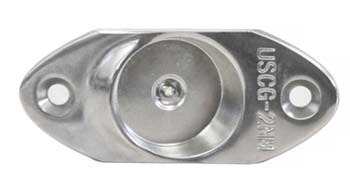

T-Top |

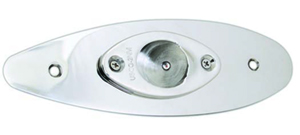

Adapter Plate - Flat |
Adapter Plate-24° Mount |
- Standard size and smaller T-Top size
- Small powerful LED light that flush mounts into hull of boat
- Made of 316 stainless steel polished finish
- Consumes 90% less energy than incandescent lights
- Visible for 2 nautical miles
- For use on any vessel up to 65 feet
|

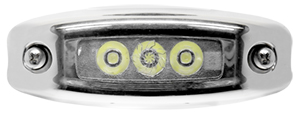

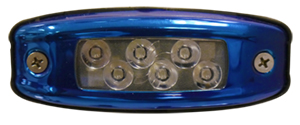

Underwater LED Lights
- 3 LED Model - 1500 lumens each, RGB varies
- 6 LED Model - 2700 lumens each, RGB varies
- 12 Led Model - 5500 lumens each, RGB varies
- Thermal overheat protection
- Anodized die-cast aluminum body IP68
- Available in three vibrant colors, White, Blue & Green, & RGB (RGB’s must utilize controller)
- The brightest surface mounted under water lights available
- Includes 316 polished stainless steel covers (standard)
- Add $10 for powder coat color (optional)
|

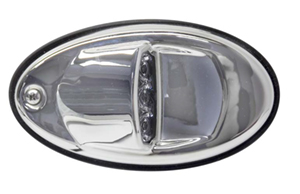

Docking Navigation Lights
 Flush Mount
|
Surface Mount |
- Waterproof design, made with our TecSeal Urethane potting
- Flush mount 2000 lumens per light and surface mount 1400 lumens per light
- Anodized cast aluminum heatsink IP68
- 316 Stainless steel cover
- Form fitting TPE gasket to protect the boat finish
- Add color to match boat, $15 pair
|
Spreader Lights

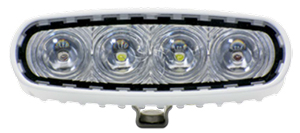

Bracket Mount |

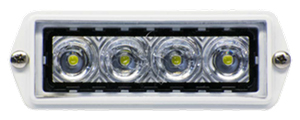

Flush Mount |
- Designed for the most demanding task illumination applications, in the most extreme environments
- Operating voltage range of 9 – 30 VDC
- Vibration resistant and 100% water proof
- Built with anodized and white powder coated aluminum bodies with impact-resistant polycarbonate flood projection lenses for exceptional durability
- Available with four high-performance white LEDs
- Completely waterproof and sealed to IP68 standards
- Reliable performance over 50,000 hours
- Stainless Steel mounting hardware included
- Bracket version 1450 lumens and flush mount 1300 lumens
|

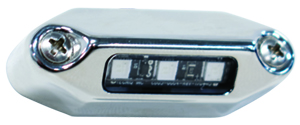

Linear Area / Accent Lights
|
- Available with three different mounting covers – Horizontal, Vertical, and 45°
- High clarity lens design emits a light projection range of 180° wide
- Corrosion resistant 316 Stainless Steel covers
- Surface mount installation with two fasteners
- Perfect for accent or step lighting
- IP68 rated – Water and dust proof
- White LED model provides 120 lumens
|
|

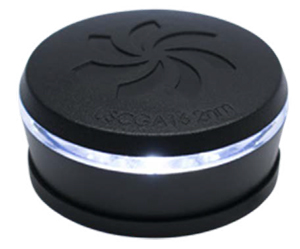

All -Round Navigation Light
|
- Great looking light, designed to provide years of safe boating
- Twist-lock base provides easy installation and hidden fasteners
- TecSeal Urethane Potting
- Excellent UV Resistance
- Meets ABYC A-16 and USCG 2NM
- 360 degree visibility
- 100mA power draw
- IP68 Rated – water & dust proof
- Includes TPE mounting gasket
- Surface mount only
|
|
|
|
Stainless Steel LED Navigation Lights
| Part # |
Description |
| LEDNL2R |
Port: Standard |
| LEDNL2G |
Starboard: Standard |
| LEDNL2HTR |
Port: T-Top |
| LEDNL2HTG |
Starboard: T-Top |
| LEDNLAP |
Adapter Plate - Flat |
| LEDAP |
Adapter Plate - Allows 24 ° Mount on Center Console |
Underwater Lighting
| Part # |
Description |
| LM50-WS03-1 |
Underwater Light, White, 3 LED, 1500 Lumens |
| LM50-BS03-1 |
Underwater Light, Blue, 3 LED |
| LM50-GS03-1 |
Underwater Light, Green, 3 LED |
| LM50-WS06-1 |
Underwater Light, White, 6 LED, 2700 Lumens |
| LM50-BS06-1 |
Underwater Light, Blue, 6 LED |
| LM50-GS06-1 |
Underwater Light, Green, 6 LED |
| LM50-WS12-1 |
Underwater Light, White, 12 LED, 5500 Lumens |
| LM50-BS12-1 |
Underwater Light, Blue, 12 LED |
| LM50-GS12-1 |
Underwater Light, Green, 12 LED |
| LM50-3S03-1 |
Underwater Light + Driver, RGB 3 LED |
| LM50-3S06-1 |
Underwater Light + Driver, RGB 6 LED |
| LM50-3S12-1 |
Underwater Light + Driver, RGB 12 LED |
Docking Light
| Part # |
Description |
| LE60-WS20-1 |
Recessed Mount LED Docking Light, Pair |
| LE61-WS00-1 |
Surface Mount LED Docking Light, Pair |
Spreader Light
| Part # |
Description |
| LP10-WWFP-1 |
Spreader Light Flush Mount, White LED, Pigtail Wires |
| LP11-WWFP-1 |
Spreader Light Bracket Mount, White LED, Pigtail Wires |
Linear Area / Accent Light
| Part # |
Description |
| LD03-B000-1 |
Mini Light Blue Lamp Body |
| LD03-G000-1 |
Mini Light Green Lamp Body |
| LD03-R000-1 |
Mini Light Red Lamp Body |
| LD03-W000-1 |
Mini Light White Lamp Body |
| LD03-0S45-1 |
Mini Light Stainless 45 Degree Case |
| LD03-0SH0-1 |
Mini Light Stainless Horizontal Case |
| LD03-0SV0-1 |
Mini Light Stainless Vertical Case |
All - Round Navigation Light
| Part # |
Description |
| LM10-WB00-1 |
Waketower All-Round Navigation Light, White LED, 2NM |
|
|
