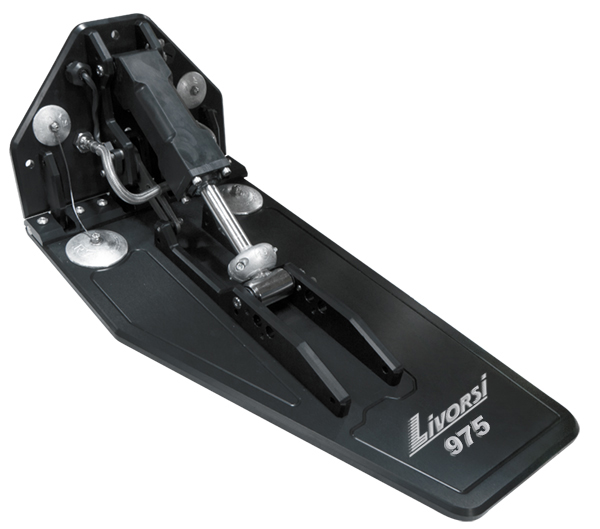

Livorsi 975 Trim Tab

FREES UP TO 6" OF TRANSOM SPACE

When comparing the Livorsi 975 to the Livorsi 950 (Merc 280S)

  • 975 tab is 12” wide vs the 950 tab which is 14” thus gaining 4 inches of transom space when moving tabs outward on each side.
  • The 975 cutaway is more aggressive and will gain you another 2 inches (1” each side) to clear motors and not disrupt props.
  • 3 inches clearance gained for each side, total of 6 inches overall to clear props and minimize cavitation for engine cooling.
  • Transom plates are smaller to give you more adjustability on the transom.

Features:

  • Available with 4 or 6 inch underwater LED lights
  • Available in 11 powder coat colors and private labeling
  • Mil-Spec hard coat anodized topped with a powder coat finish to prevent corrosion
  • For triple and quad applications for better prop clearance
  • Electronic models are compatible with NMEA 2000® compliant systems, Mercury VesselView® or Livorsi LED Indicators.
  • The electronic IP68 sensor plugs directly to Livorsi's LED Position Indicator
  • Tabs are CNC machined from billet aluminum, no casting
  • Livorsi transom plates are much smaller for adjustability in pockets.
  • All hinge pins and hardware are stainless steel
  • Adjustable transom angles without the use of special tools
  • Hydraulic cylinders are designed for 1500 PSI working pressure with dual seals
  • These cylinders may be serviced
  • Five anodes for complete saltwater protection

Please call Livorsi Marine at 847.752.2700 for more details.

Download our trim tab 975 info sheet

Download our trim tab info sheet

Download our trim tab 975 info sheet

Download our logo file requirements

Download our LED Underwater Light info sheet

Download our Transom Angle Diagram sheet

Download our Trim Tab dimensions sheet

Colors Available

TRIM TAB COLORS

Trim Tab Kits include:

  • Two billet tabs
  • Two pumps
  • Mounting hardware
  • Harnesses
  • Thru hull fittings
  • Stainless steel braided hoses are purchased separately.Four hoses are needed for one kit, two per cylinder.

Stainless Steel Braided Hoses

Inverted Flare Hose Ends

Inverted Flare Hose Ends

SAE J514 37° Flare Ends

SAE J514 37 JIC FLARE HOSE ENDS
30 inchesSSBH30IN-1
36 inchesSSBH36IN-1
48 inches SSBH48IN-1
60 inches SSBH60IN-1
72 inches SSBH72IN-1
90 inches SSBH90IN-1
19 feet SSBH19FT-1
21 feet SSBH21FT-1
26 feet SSBH26FT-1
30 inches SSBH30IN
34 inches SSBH34IN
60 inches SSBH60IN
90 inches SSBH90IN
19 feet SSBH19FT
21 feet SSBH21FT
26 feet SSBH26FT
